10HL Professional Craft Beer Brewing Equipment With Stainless Steel Tank

  • 1
  • 2

Brand Name : HERMANN

Model Number : HEM-10HL

Certification : CE,ISO9001,TUV

Place of Origin : China

MOQ : ≥1Set/Sets

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1-30 Set/Sets per Month

Delivery Time : 15-50 work days

Packaging Details : Iron frame

Name : Professional beer making equipment

Material : Stainless Steel 304/Stainless Steel 316/Copper

Heating way : Steam Heating /Electric Tube Heating/Direct Fire Heating

Thickness of Tanks : Inner 3mm/Outer 2mm

Heat Insulation : Rock Wool

Control System : PLC

Surface : Brushed Stainless Steel

After-sales Service Provided : Engineers available to service machinery overseas

Contact Now

10HL Professional Craft Beer Brewing Equipment With Stainless Steel Tank

The Whole System of 10HL Beer Brewing Introduction

Equipments Request Components
1. Milling System Malt Miller
2. Mashing System Mash/Lauter Tun
Boiler Tank
Boiler
Heat Exchanger
Wort Pump
Stiring Device (Optional)
Other accessories are available: 1. Ornamental Pipe; 2. Mashing Pipeline; 3. Operating Plateform; 4. Yeast Feeder; 5. Venturi Tube; 6. Butterfly Valve DN40; 7. Butterfly Valve DN32; 8. Soft Pipe; 9. Dregs Rake; 10. Sugar Measuring Cylinder; 11. Saccharimeter;
3. Fermenting System Fermentation Tank
Other accessories are available: 1. L-Pipe; 2. Butterfly Valve; 3. Pressure Gage; 4. Solenoid Valve; 5. Vacuum Valve; 6. Cooling Pipe; 7. Thermal Insulation Pipe;
4. Cooling System Ice Water Tank
Refrigeration Machine
Centrifugal Pump
Evaporator
Ice Water Pump
Relative Pipes and Valves
5. CIP System Washing Tank
Sterilization Tank
Pump and Valve
6. Filter System Kieselguhr Filter
Membrane Filter
Filtered Beer Tanks
7. Packing System Fresh Keg Packing Machine
Pop Can Packing Machine
Glass Bottle Packing Machine
8. Controlling System Mashing Control Panel
Fermenting Control Panel
Refrigerating Control Panel

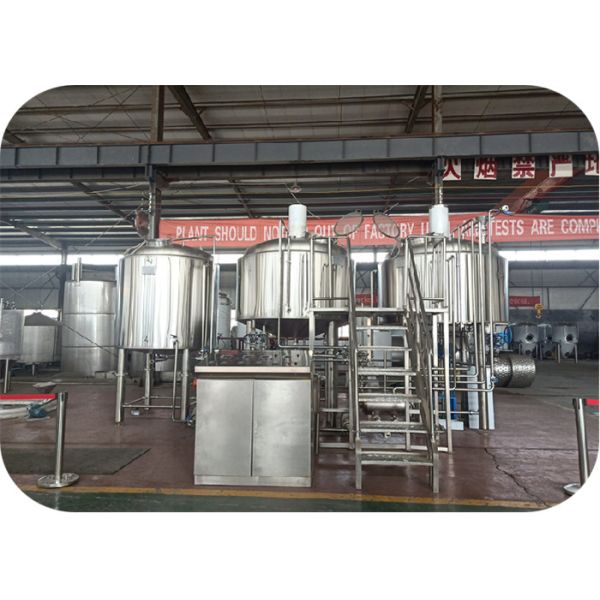

10HL Professional Craft Beer Brewing Equipment With Stainless Steel Tank

Mash System
Mash tun,Lauter tun
1: Total capacity 1300 litres,Effective capacity 1000 litres；
2: Size:Φ With reference to the drawings；
3: Heat Insulation:Polyurethane-thickness:80mm；
4: Inner 3.0mm/external 2.0mm(Wire drawing)；
5: Torispherical head:3.0mm Precision polishing；
6: Cone:3.0mm ；
7:Stir:grain raking,Stir:The upper stirring motor is equipped with a reducer,speed ratio 40；
8:Heating mode:steam,Dimple Jacket,The tank and cone are heated,Free rising temperature can be achieved；
9:Sieve plate:Milling machine sieve plate,4.0mm,spacing 0.7；
10:Cleaning :spray ball,360°；
11:Grain removal:The side Grain removal；
12:Cleaning :spray ball,360°；
13:Sparging device:Ring shape；
14:Whirlpool :Side entry,Diagonal plane,Formula calculation Angle；
15:Vent；Top vent；
16:Thermometry:pt100 sensor,Temperature control digital display；
17:Level gauge:Mash water feeding and dosing device ；
18:Internal Pickling passivation；
19:SUS304；
Wort kettle
Whirlpool setting tank
Mash tun accessories: Steam boiler,Mash pump,Plate heat exchanger,Mash tun pipes,Operation platform,Measuring bucket,Rake,Sugar meter,Malt Milling Unit,Wort thermometer,Yeast propagation,Hops dosing tank,Buffering tank,Oxygen filling device


PRODUCT FEATURES

▪ Mash tun vessel with multi steam jackets and agitation.

▪ Lauter tun vessel with grain out door and Milling sieve plate

▪ Brew kettle/ whirlpool vessel with multi steam jackets

▪ SS 304 work platform with sanitary process with a molding technology

▪ Sanitary piping &valves

▪ Sanitary wort pumps with variable speed control

▪ Glass wort grant

▪ Sanitary heat exchanger and wort aeration system

▪ Tank light assemblies

▪ Mash hydration assembly

▪ Brewhouse control cabinet


Product Tags:

craft brewing equipment



commercial beer brewing systems

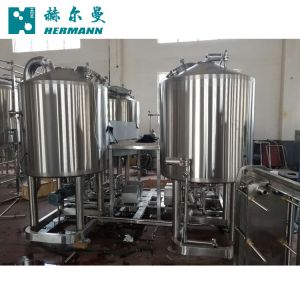

Cheap 10HL Professional Craft Beer Brewing Equipment With Stainless Steel Tank wholesale
